After nearly 30 years of market verification, it has stabilized the full CNC CNC operating system and adopted the international general mechanical code; Intelligent positioning function; Guided operation mode; Up to 11 kinds of discharge circuits; Custom tool lifting control; Offset function in automatic machining; Automatic three-axis shaking (interpolation); Automatic three-axis three linkage machining; Simple manual machining mode; Easy to learn, easy to process all kinds of molds; Reference expert database; USP mobile interface; Touch screen input, manual control box operation; Wide range of application.
Product introduction

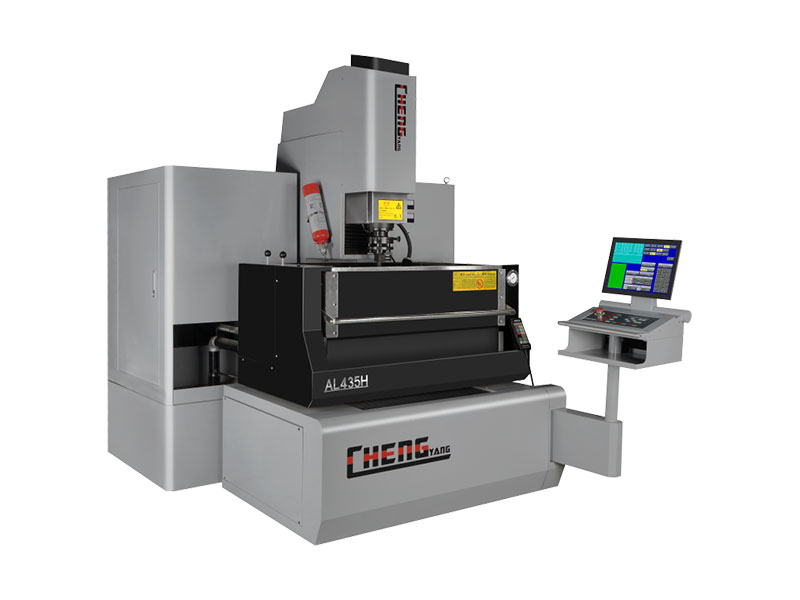

Cnc-al series spark machine is one of the core high-end products successfully developed by Chengyang machinery company. Since its listing, it has been quickly favored and praised by customers with high precision, high quality, high stability and advantageous price. This product has reached the advanced level of similar international products and is the first choice of high-end spark machine.
Product overview:
Mechanical structure: cross slide
X / Y / Z stroke: 400 * 350 * 300mm
Table size: 700 * 400mm
Working liquid tank size: 1000 * 600 * 400mm
Product application:
X,Y,Z TRAVEL(mm)
X/Y/Z/ 400/350/300
X,Y,Z Panasonic servo system for shaft inlet
CNC system, touch screen input, manual box operation
Technical parameter
Mainframe |
AL435H |
X/Y/Z route |
400*350*300mm |
workbench |
700*400mm |
Boundary dimension |
2600*2400*2250mm |
Polar distance |
250-500mm |
Electrode bearing |
25kg |
Weight of workpiece |
300kg |
Bench height |
930~980mm |
Lubrication type |
Manual |
Weight of machine tool |
2600kg |
Working liquid tank/tank |
Spec |
Table size |
1000*600*400mm |
Maximum liquid level |
240mm |
Water tank capacity |
360L |
Work slot opening way |
UP/DOWN MANUAL |
Liquid level control |
|
Filter fineness |
5μm |
Tank size |
1300*950*1750mm |
Optional item |
● standard ◎optional |
加工液(火花油) |
◎ |
Cooling equipment |
◎ |
ATC Electrode library |
◎ |
C axle |
◎ |
Rotary table |
◎ |
EROWA/3R clamp |
◎ |
Voltage stabilizer |
◎ |
Constant temperature device |
◎ |
Nc power supply unit |
Spec |
Operating system |
Cheng Yang |
Controlled axes |
3 axis linkage(5 axis optional) |
CNC order |
Standard G code |
Display mode |
15 inch LCD |
Input mode |
Touch screen/keyboard |
Saving mode |
128MB-2G,SSD |
Language |
CN/EN |
Driving type |
Digital AC servo motor |
Machining efficiency |
300-400mm³/min |
Electrode loss |
≤0.1% |
Optimal degree of finish |
Ra:0.2 |
Minimum driving unit |
0.001 |
Movement speed |
2.5m/min |
Speed of cutter lifting |
4m/min |
Processing electric current |
50A optional |
Fireproofing |
Automatic control |
Status lamp |
Red, yellow, green |
Input power |
3PH AC380V,50-60Hz |
Power supply cabinet size |
980*520*1820mm |
Power supply cabinet weight |
400kg |
Total power input |
13KVA optional) |
Discharge circuit |
● standard ◎ optional |
Mirror processing circuit |
● |
High-speed graphite circuit |
● |
Carbide circuit |
● |
titanium alloy discharge |
● |
Aluminum alloy discharge |
● |
Diamond wheel discharge |
● |
Characteristic function |
|
Adaptive discharge machining control |
AUTO processing |
Intelligent positioning system |
Automatic arc clearing |
Expert process database |
High speed AJC tool lifting |
Automatic memory function |
Pause to start point |
Real time parameter modify |
Subsection orbiting |
X/Y offset during discharging |
Inequilateral orbiting |
Real time measurement |
Short return function |
3 axis diagonal orbiting |
Alarm function |
Anti-fire control system |
Oil level control |
