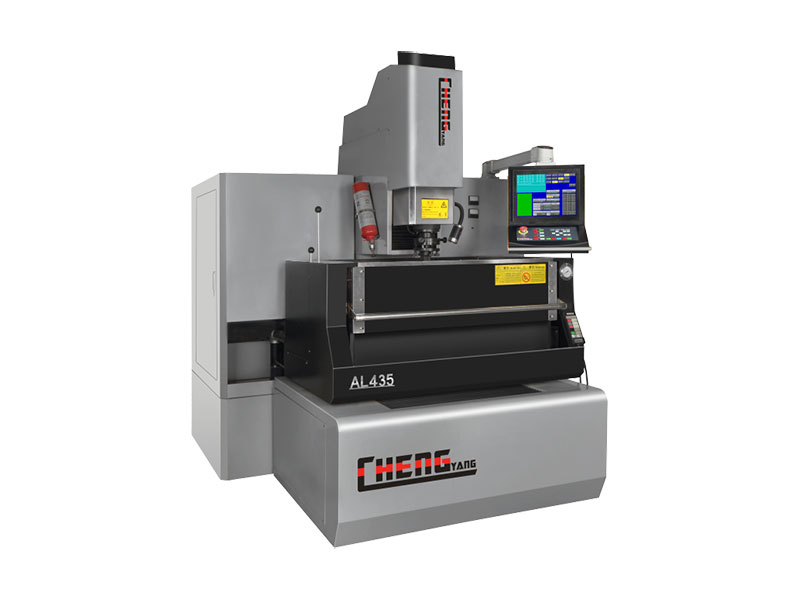

AL435 Sinker EDM

Browse:3808 Time:2021-05-05

After nearly 30 years of market verification, it has stabilized the full CNC CNC operating system and adopted the international general mechanical code; Intelligent positioning function; Guided operation mode; Up to 11 kinds of discharge circuits; Custom tool lifting control; Offset function in automatic machining; Automatic three-axis shaking (interpolation); Automatic three-axis three linkage machining; Simple manual machining mode; Easy to learn, easy to process all kinds of molds; Reference expert database; USP mobile interface; Touch screen input, manual box operation; Wide range of application.

Product introduction
Cnc-al series spark machine is one of the core high-end products successfully developed by Chengyang machinery company. Since its listing, it has been quickly favored and praised by customers with high precision, high quality, high stability and advantageous price. This product has reached the advanced level of similar international products and is the first choice of high-end spark machine.

Product overview:
Mechanical structure: cross slide
X / Y / Z stroke：400*350*300mm
Table size:700*400mm
Working fluid tank size:1000*600*400mm

Product application:
X，Y，Z TRAVEL（mm）
X/Y/Z/ 400/350/300
X，Y，ZPanasonic servo system for shaft inlet
CNC system, touch screen input, manual box operation

Technical parameter

Mainframe	AL435
X/Y/Z route	400350300mm
workbench	700*400mm
Boundary dimension	260024002250mm
Polar distance	250-500mm
Electrode bearing	25kg
Weight of workpiece	300kg
Bench height	930~980mm
Lubrication type	Manual
Weight of machine tool	2600kg

Working liquid tank/tank	Spec
Table size	1000600400mm
Maximum liquid level	240mm
Water tank capacity	360L
Work slot opening way	UP/DOWN MANUAL
Liquid level control	Manual
Filter fineness	5μm
Tank size	13009501750mm

Optional item	●standard ◎optional
Machining fluid (spark oil)	◎
Cooling equipment	◎
Electrode library	◎
C axle	◎
Rotary table	◎
EREROWA/3R clamp	◎
Voltage stabilizer	◎
Constant temperature device	◎

Nc power supply unit	Spec
Operating system	程揚
Controlled axes	3 axis linkage(5 axis optional)
CNC order	Standard G code
Display mode	15 Britain LCD
Input mode	Touch screen/keyboard
Saving mode	128MB－2G，SSD
Language	CN/EN
Driving type	Digital AC servo motor
Machining efficiency	300-400mm³/min
Electrode loss	≤0.1%
Optimal degree of finish	Ra：0.2
Minimum driving unit	0.001
Movement speed	2.5m/min
Speed of cutter lifting	4m/min
Processing electric current	50A optional
Fireproofing	Automatic control
Status lamp	Red, yellow, green
Input power	3PH AC380V，50-60Hz
Power supply cabinet size	9805201820mm
Power supply cabinet weight	400kg
Total power input	13KVA optional)

Discharge circuit	●standard ◎optional
Mirror processing circuit	●
High-speed graphite circuit	●
Carbide circuit	●
titanium alloy discharge	●
Aluminum alloy discharge	●
Diamond wheel discharge	●

特性功能Characteristic function
Adaptive discharge machining control	AUTO processing
Intelligent positioning system	Automatic arc clearing
Expert process database	High speed AJC tool lifting
atic memory function	Pause to start point
Real time parameter modify	Subsection orbiting
X/Y offset during discharging	Inequilateral orbiting
Real time measurement	Short return function
3 axis diagonal orbiting	Alarm function
Anti-fire control system	Oil level control
